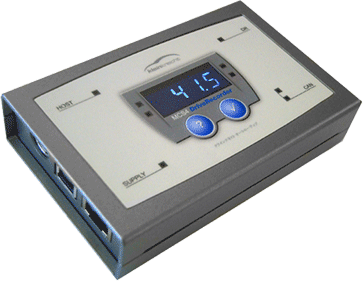

The MCS4 DR has now superseded the MCS4, the culmination of 15 years experience in calibration tool development. It is powered by a faster 65MHz Motorola PowerPC 823 at its heart and the VxWorks Real Time Operating System, and is a significant upgrade to what has been the most powerful and versatile measurement and calibration system in recent years. The MCS4 DR includes a 1GB flash disk that is designed to enable circular buffer recording of engine, drivetrain and other data at high speed. It also provides a storage location for description, memory image files or other information that can be kept with a vehicle potentially saving time. It also includes a bright LED alphanumeric display to allow convenient configuration options without need to connect a PC.
Technical Data
65 MHz Motorola MPC823 PowerPC High reliability SMT / BGA hardware design VxWorks Real Time Operating System Dimensions (in mm): 108L x 70W x 26H Temperature range: -40 to +85 ° C operating Power Supply: 4V to 40V 1GB Flash Disk is included allowing recording of data without the presence of a PC Recording to Flash Disk at up to 3 MB/sec Upload of Flash Disk recorded data to the PC at up to 50MB/min.
Display
Bright LED alphanumeric.
Interfaces
1 Ethernet 10BaseT 1 RS-232 Port 2 Channels CAN 2.0B Maximum baud rate 1 Mbps
Network Functionality
DHCP server or fixed IP Address Support Auto MDI / MDIX crossover select
CAN and CCP Functionality
ECU Calibration and data acquisition over CCP (10 ECUs simultaneously) ECU flash programming over CCP CAN data acquisition and bus monitoring CAN bus termination software selectable
